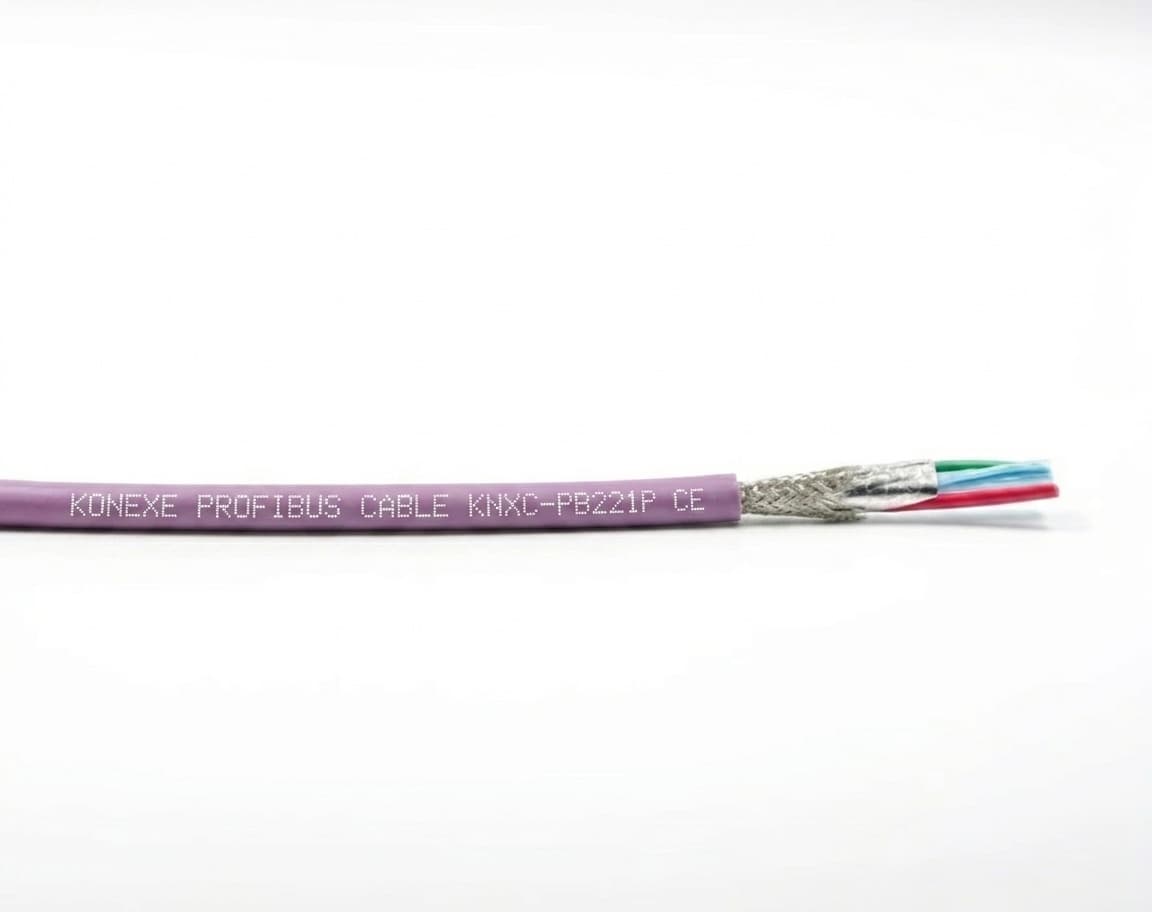

Konexe Profibus DP Cable 1 Pair 22 AWG
High-performance 1 Pair 22 AWG Profibus DP cable with FHDPE insulation, dual shielding, 8.0mm OD. Optimized for industrial automation. and a robust 8.0mm violet PVC jacket. CE & EU compliant.
Product Overview
The Konexe Profibus DP Cable is engineered for high-speed data transmission in industrial fieldbus systems. Featuring a 1-pair 22 AWG configuration, it utilizes Foam High-Density Polyethylene (FHDPE) insulation for superior electrical properties. To ensure maximum signal integrity in EMI-heavy environments, the cable is equipped with a dual-layer shield consisting of 100% coverage Alumyar Tape and an Annealed Tinned Copper (ATC) braid. Encased in a durable violet PVC sheath, it meets EU and CE standards for industrial reliability.
Technical Specifications:
- Pair Count: 1 Pair
- Conductor Size: 22 AWG
- Insulation: FHDPE (Foam High-Density Polyethylene)
- Core Identification: Red & Green
- Filler: Special Thread for structural integrity
- Primary Shield: Alumyar Tape (Aluminium + Polyester), 100% Coverage
- Secondary Shield: ATC (Annealed Tinned Copper) Braiding
- Outer Sheath: PVC, Violet
- Outer Diameter: 8.0 mm
- Temperature Range: -20°C to +60°C (UL Rating: 60°C)
- Compliance: EU & CE Marked
